We can Machine to Your Specs. !!!! We can Mill, Turn, Grind, and More !!!!
Home Contact Machine Shop Fabrication Shop Steel Warehouse Product Gallery Site Map

Machine Shop
Capacities CAD Systems - slides
Equipment CNC Turned Parts - slides
  CNC Milled Parts - slides

Call or e-mail us!!!
Phone: (419)422-9632
E-mail: machineshop@saussersteel.com

Machine Shop Capacities
  • CNC Mills
  • Travel
  • 64" - 26" - 25"z
  • Table size - 114" x 18"
  • Between table & spindle - 25"z (max)
  • Manual Mills
  • Travel
  • 35 ¾" - 58" - 45"z table - 29½"z quill
  • Table size - 48" x 74"
  • Between table & spindle - 45"z (max)
  • CNC Lathes
  • Material size capacity
  • 14" diameter - 40" long
  • under 3 1/8" - over 40" long (hole through chuck)
  • Manual Lathes
  • Material size capacity
  • 12" diameter - 80" long
  • under 2 1/8" diameter - over 80" long (hole through chuck)
  • Surface Grinder
  • 80" x 24" x 21 5/8"
  • Shaping Attachment
  • 4" Stroke



These dimensions are for reference. We can work with larger pieces.
The between table and spindle dimensions are without a tool.

back



top


Machine Shop Equipment

Click on machine to see picture and capacities

CNC Mills
Romi D1250
Bridgeport
Sajo
Shadow
Crusader II
Manual Mills
Bridgeport #1
Bridgeport #2
Bridgeport #3
G&L Horizonal

CNC Lathe
Romi M20
EZ-Path
Puma-10


Manual Lathes
Clausing #1
Clausing #2
American Tool


Other Machines
Acer AGS-2480AHD -Surface Grinder
Lagun MZ-12 -Shaping Attachment

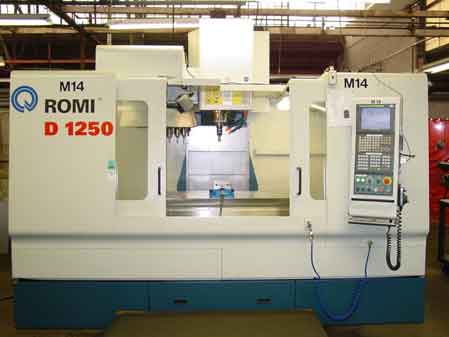

ROMI D1250

  • Capacity
  • X axis: 50"
  • Y axis: 24"
  • Z axis: 25"

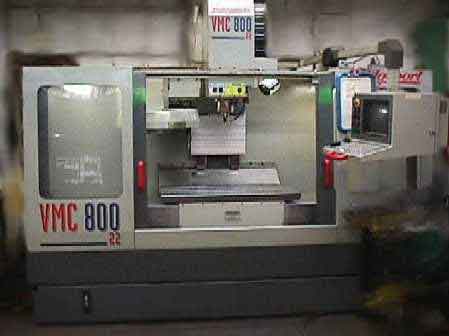

BRIDGEPORT VMC-800

  • Capacity
  • X axis: 30 1/2"
  • Y axis: 18 1/2"
  • Z axis: 13"

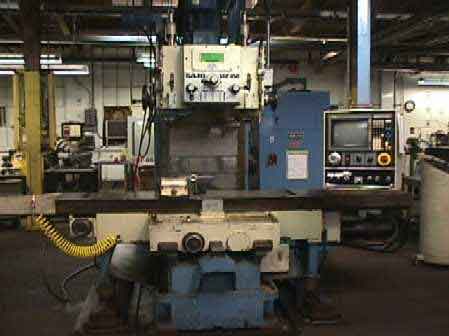

SAJO VBF-450

  • Capacity
  • X axis: 64"
  • Y axis: 26"
  • Z axis:  26"

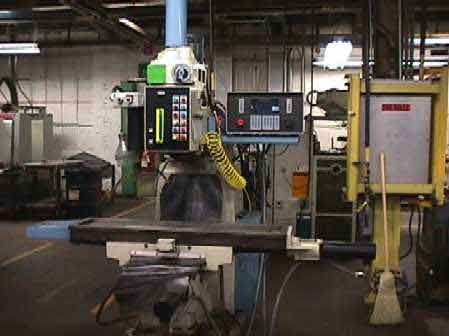

SHADOW

  • Capacity
  • X axis: 32"
  • Y axis: 18"
  • Z axis
  • Quill: 6"
  • Knee: 18"

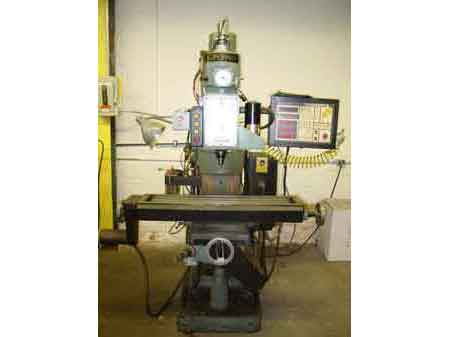

CRUSADER II

  • Capacity
  • X axis: 23 1/8"
  • Y axis: 11"
  • Z axis
  • Quill: 4"
  • Knee: 13 1/2"

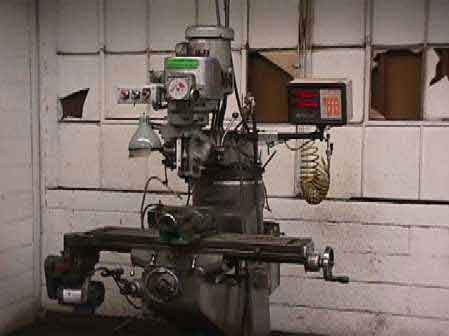

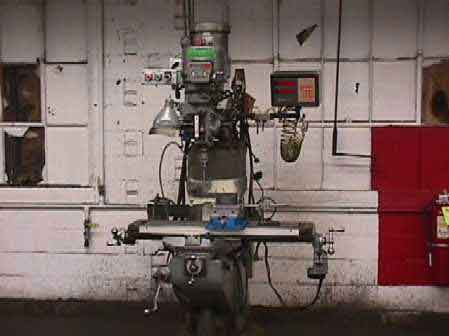

FOUR MANUAL BRIDGEPORTS

  • Capacity
  • X axis: 231/2"
  • Y axis: 12"
  • Z axis
  • Quill: 5"
  • Knee: 13 1/2"


  • Capacity

  • X axis: 23 1/2"

  • Y axis: 12"

  • Z axis

  • Quill: 5"

  • Knee: 13 1/2"


  • Capacity
  • X axis: 23 1/2"
  • Y axis: 12"
  • Z axis
  • Quill: 5"
  • Knee: 13 1/2"



  • Capacity

  • X axis: 32"

  • Y axis: 15"

  • Z axis

  • Quill: 5"

  • Knee: 13 1/2"


G&L HORIZONAL

  • Capacity
  • X axis: 35 3/4"
  • Y axis: 58"
  • Z axis
  • Spindle: 29 1/2"
  • Knee: 45"

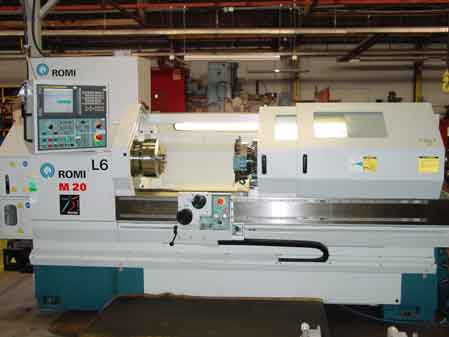

ROMI M20 CNC LATHE

  • Capacity
  • Height of center: 10"
  • Distance between centers: 60"
  • Swing over bed: 20 1/2"
  • Swing over cross slide: 10 1/8"
  • Hole diameter through spindle: 3 1/8"

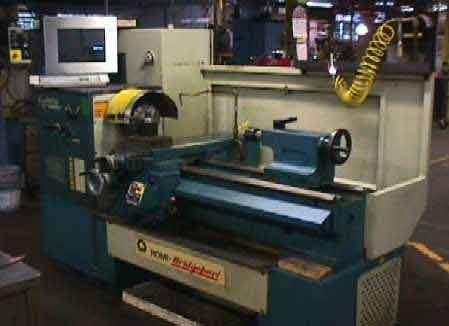

EZ-PATH CNC LATHE

  • Capacity
  • Height of center: 8"
  • Distance between centers: 40"
  • Swing over bed: 16 1/2"
  • Swing over cross slide: 8"
  • Hole diameter through spindle: 1 5/16"

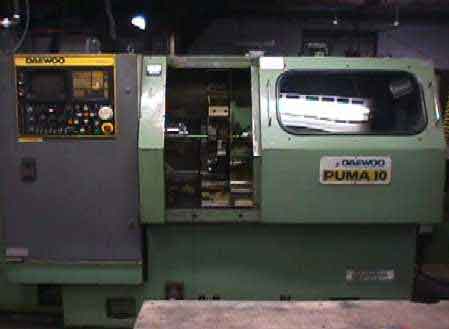

PUMA-10 CNC LATHE

  • Capacity
  • Height of center: 14"
  • Distance between centers: 40"
  • Swing over bed: 26"
  • Swing over cross slide: 14"
  • Hole diameter through spindle: 2½"

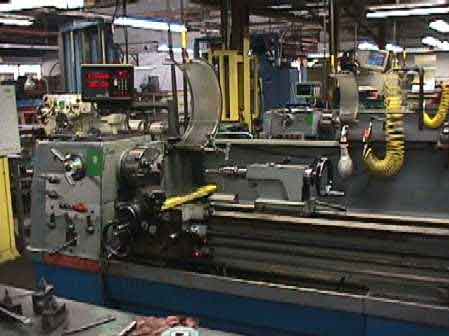

CLAUSING LATHE

  • Capacity
  • Height of center: 7 1/2"
  • Distance between centers: 50"
  • Swing over bed: 15 1/4"
  • Swing over cross slide: 9 1/2"
  • Hole diameter through spindle: 21/8"

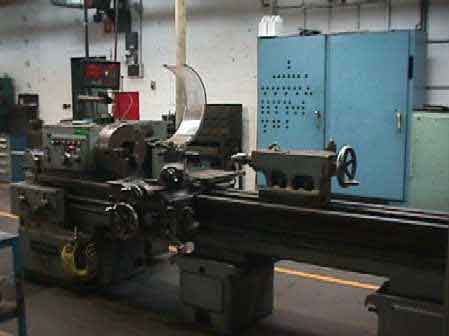

AMERICAN TOOL LATHE

  • Capacity
  • Height of center: 9 1/16"
  • Distance between centers: 80"
  • Swing over bed: 19 11/16"
  • Swing over cross slide: 12"
  • Hole diameter through spindle: 21/8"

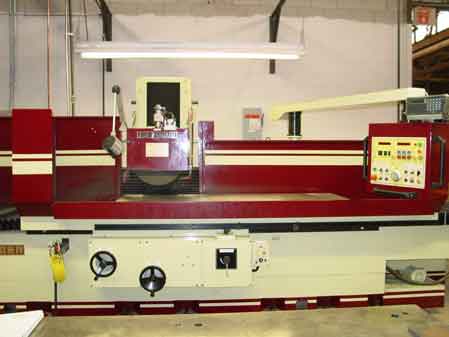

ACER AGS-2480AHD

  • Capacity
  • 80" - 24" - 21 5/8"

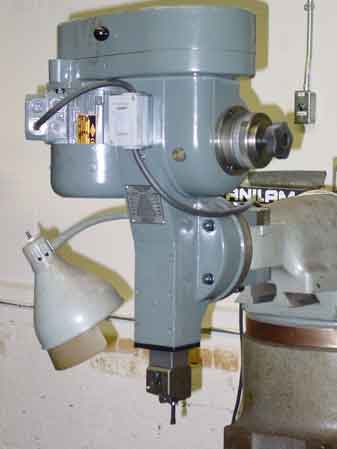

SHAPING ATTACHMENT

  • Capacity
  • Stroke: 4"
  • Strokes/minute: 80-420
